# Packaging Placement Proofs on a Wide Format Dye Sublimation Printer

 By  [MUTOH America Inc.](https://blogs.mutoh.com/blog/author/mutoh-america-inc)  ·   2 minute read

![Placement Proof on dye sub printer - Blog Header (2)](https://blogs.mutoh.com/hs-fs/hubfs/Placement%20Proof%20on%20dye%20sub%20printer%20-%20Blog%20Header%20(2).png?width=1677&height=938&name=Placement%20Proof%20on%20dye%20sub%20printer%20-%20Blog%20Header%20(2).png)

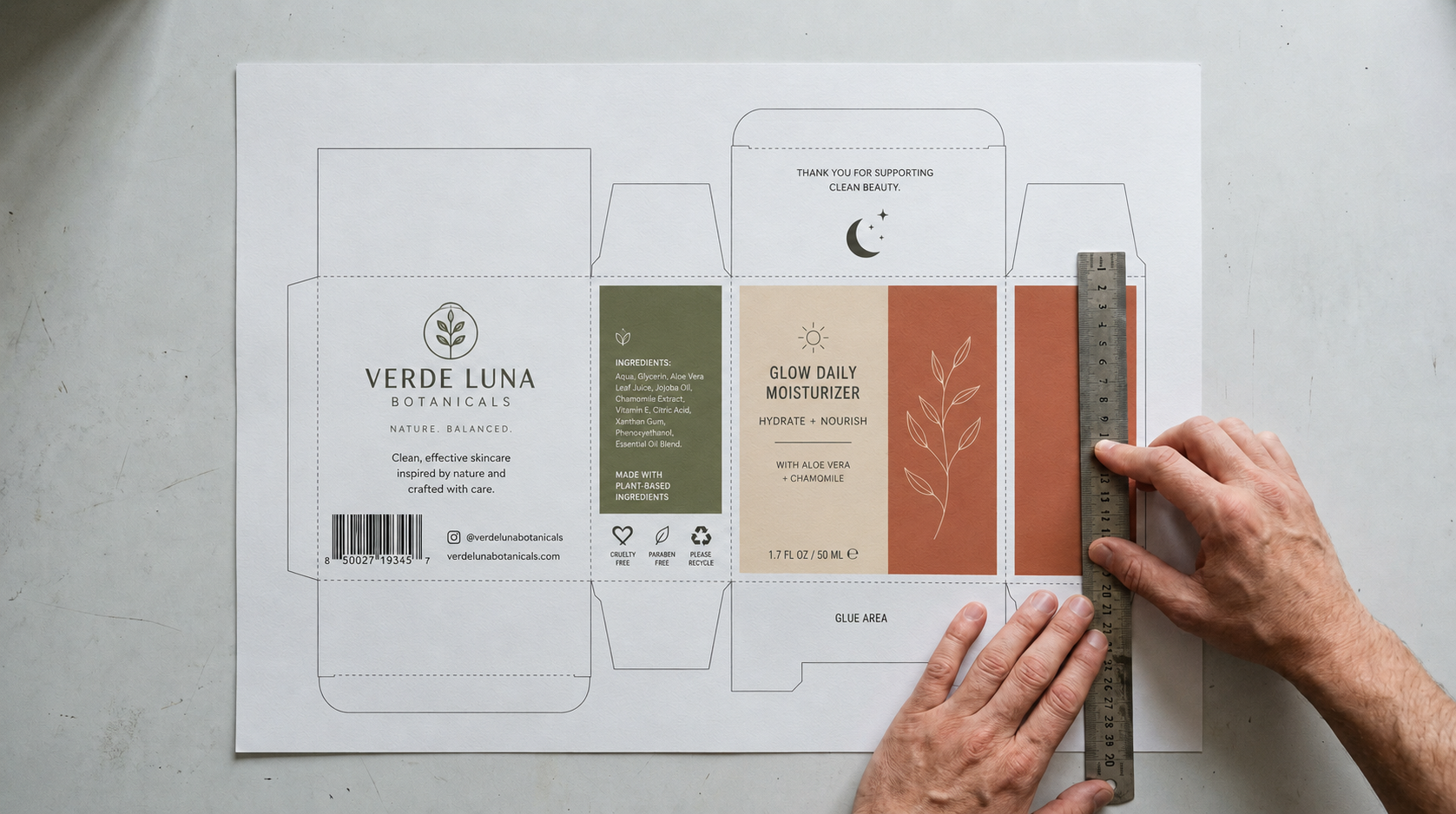

Before sending a carton, case or a d/c box to the press, someone must verify that the barcode isn't placed on a fold, the logo is visible above the glue flap, and the ingredient panel isn't hidden by the seal. That check calls for a full-size print you can cut out, fold up, and hold.

Two MUTOH dye sublimation printers cover this work, and choosing between them comes down to one question: how wide is your dieline? The [XpertJet 1642WR Pro](https://mutoh.com/product/xpertjet-1642wr-pro/) prints up to 63.6 inches and the [XpertJet 1341WR Pro up](https://mutoh.com/product/xpertjet-1341wr-pro/) to 53.58 inches.

## What a Placement Proof Verifies?

A placement proof, also called a layout proof, verifies image positioning and dimensions against a dieline before production begins. Text, logos, barcodes, seal areas, tear strips, and legal copy all get checked against the structure of the package itself.

The proof prints flat, adhered onto corrugated, is cut out, then folded or assembled. From there the operator can check a short list of issues: copy crossing a score line, a barcode landing on a crease, artwork running past the trim, or a panel that reads upside down once the box is formed and glued.

### Why Placement Proofs Don't Need Color Matching?

Placement proofing is not contract proofing. A contract proof commits to brand color. A placement proof commits to position and dimension.

The proof is still printed in color. If one panel is yellow and the next is red, the operator should see distinct yellow and red on each. It doesn't need to match the exact shade from the brand guide, just enough color to differentiate the panels and verify each one is correctly placed.

## What Both Dye-Sub Printers Bring to Placement Proofing?

Beyond print width, the [XpertJet 1642WR Pro](https://mutoh.com/product/xpertjet-1642wr-pro/) and [XpertJet 1341WR Pro](https://mutoh.com/product/xpertjet-1341wr-pro/) are built on the same platform and handle placement proofing the same way. Three things matter most for this work.

### Four-Color Output

Both printers run a four-color CMYK ink set, which delivers everything a placement proof has to show: readable copy, scannable barcode, panels you can tell apart, and every element sized and positioned correctly against the dieline.

### Standard Paper

Packaging placement proofs don't require proofing papers or specialty media. Both printers work with standard paper, so shops can use lower-cost stock to verify artwork placement, panel alignment, folds, and barcodes before moving into production.

### Print Speed

The [XpertJet 1341WR](https://mutoh.com/product/xpertjet-1341wr-pro/) Pro produces up to 314 ft²/hr., enough to turn revisions around the same day. The [XpertJet 1642WR Pro](https://mutoh.com/product/xpertjet-1642wr-pro/) reaches up to 802ft²/hr., which matters when several proofs stack up behind a deadline or the same machine runs production work between proofing jobs.

## Keep Placement Proof Costs Under Control with Efficient Ink Usage

Producing multiple proof revisions can quickly add up, making operating costs an important consideration for packaging workflows.

Ink bought by bag costs less per milliliter than ink bought in small cartridges. Both MUTOH **dye sublimation printers** use DH21 ink in a CMYK configuration, so a complete set is four bags. The **1341WR Pro** uses 1,000 ml bags and the **XpertJet 1642WR Pro** accepts both 1,000 ml and 2,200 ml bags.

| Bag Size | Total ink | Cost per ml\* |
| --- | --- | --- |
| 1,000 ml | 4,000 ml | $0.12 |
| 2,200 ml (XPJ 1642WR-P only) | 8,800 ml | $0.08 |

*\*Based on MSRP ink bag pricing. Dealer pricing may vary by region and volume.*

Compare $0.12 and $0.08 against what you pay per milliliter now. If your number is higher, you are paying more on every proof you print, and those extra costs add up with every revision.

## A Wide Format Solution for Packaging Placement Proofs

The right fit depends on your dielines and your proofing volume. [Find your nearest dealer](https://mutoh.com/dealers/) to talk through whether the [XpertJet 1642WR Pro](https://mutoh.com/product/xpertjet-1642wr-pro/) or the [XpertJet 1341WR Pro](https://mutoh.com/product/xpertjet-1341wr-pro/) suits your workflow.
